34)    Reinstall side plate assembly and torque the three Phillips head screws
35)    Reinstall the clicker lever and torque the small Phillips head screw.

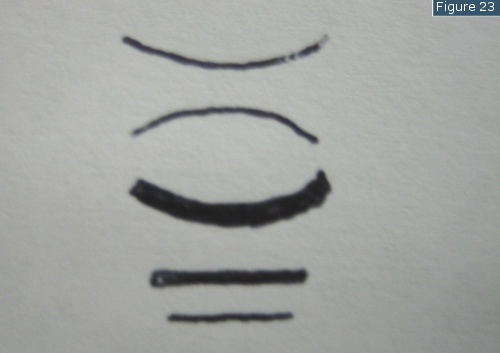

36)    Reinstall the shims and pressure washers in the correct order. [Figures 22 & 23]





37)    Reinstall the handle and handle screw, lock plate and lock plate screw.
38)    Reinstall the spool assembly
39)    Reinstall the brake case assembly. Make sure that you do not force the assembly on. If it does not line up slightly rotate the spool until the brake case drops in. The idle gears need to mesh before it can be torqued.
40)    Reinstall the left side plate (right on left handed models)
41)    Apply one drop of oil to each side of the worm gear (level wind) and one to the middle of the worm gear. [Figure 24]


42)    Test performance
